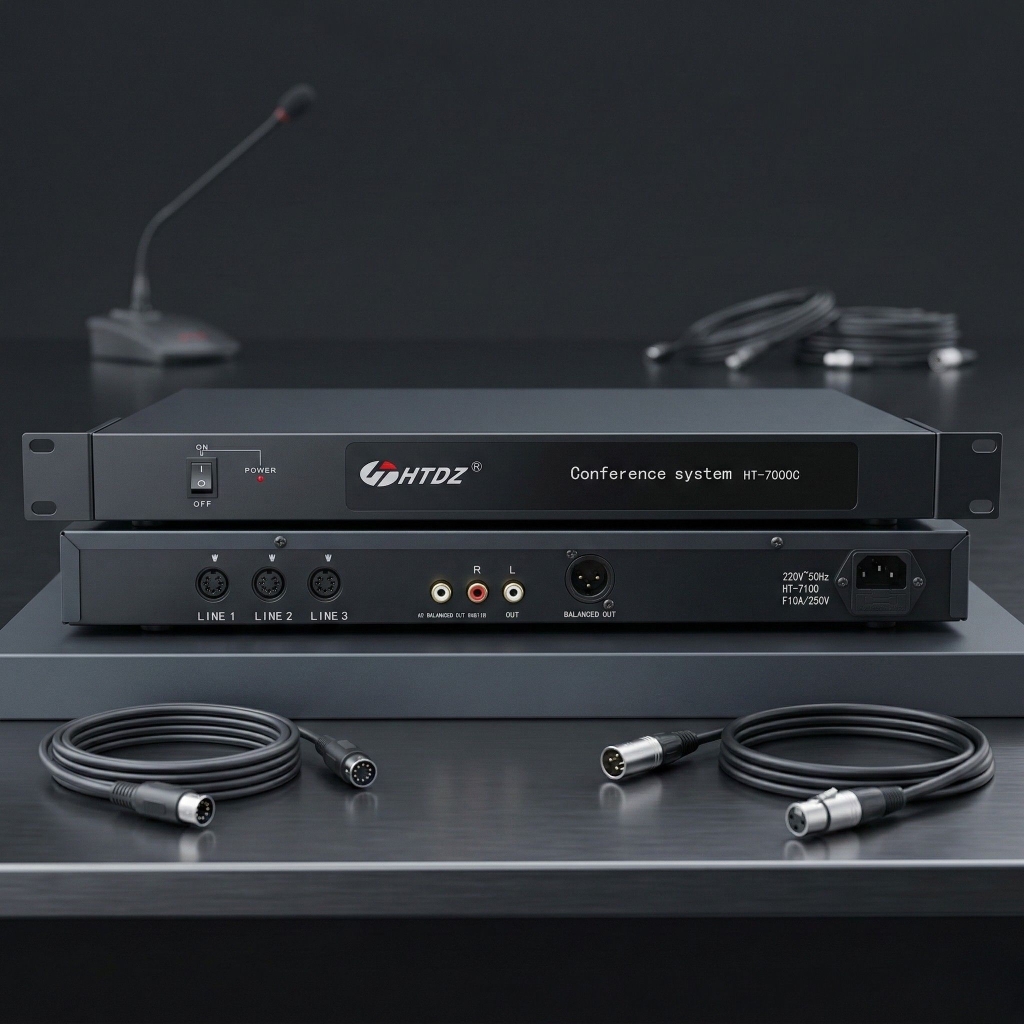

HTDZ HT-7000C

Description

The HTDZ HT-7000C Conference Main Control Unit is a reliable, scalable, and professional conference control system designed for mosques, corporate boardrooms, educational institutions, government halls, and training centers. It acts as the central brain of your conference system, managing chairman and delegate microphones while delivering clear, stable, and noise-free voice transmission.

Engineered for speech-focused environments, the HT-7000C ensures organized discussions, uninterrupted communication, and excellent audio clarity, making it ideal for committee meetings, shura discussions, lectures, and formal conferences.

---

Designed for Scalable Conference Installations

The HTDZ HT-7000C supports up to 70 conference microphones (Chairman + Delegate) as standard and can be expanded up to 200 microphone units using a power extension module. This makes it suitable for both small meeting rooms and large conference halls.

Its three independent 8-Pin DIN system output ports allow clean and stable distribution, with up to 25 microphones per line, reducing signal loss and improving system reliability.

---

Key Features & Advantages

– Central control unit for conference microphone systems
– Supports Chairman & Delegate units simultaneously
– Expandable system capacity up to 200 microphones
– Three independent 8-Pin DIN output channels
– Clear and stable speech-optimized audio output
– Balanced & unbalanced audio outputs for PA integration
– Ideal for mosque bayan, meetings, and announcements
– Rack-mountable 19-inch 1U professional design
– Easy installation and simple operation
– Built according to ISO & IEC914 professional standards

---

Crystal-Clear Audio Output for Speech Environments

The HT-7000C is optimized for voice clarity, ensuring that bayan, khutbah discussions, lectures, and speeches remain clear even during long sessions.

It provides multiple audio output options:

– XLR balanced output – for professional amplifiers
– RCA output – for mixers and recording devices
– 6.3mm audio output – for monitoring or additional equipment

This flexibility allows seamless integration with PA amplifiers, mosque sound systems, mixers, recording units, and DSP processors.

---

Perfect for Mosque & Religious Committee Use

The HTDZ HT-7000C is widely used in:

– Masjid Shura & committee meetings
– Bayan & announcement systems
– Islamic centers & madrassahs
– Religious institutions requiring structured discussions

Its stable performance ensures no mic dropouts, no noise issues, and smooth discussion flow during important religious and administrative meetings.

---

Technical Specifications

– Model: HTDZ HT-7000C
– Type: Conference Main / Control Unit
– Frequency Response: 100Hz – 18kHz
– Power Supply: 230V AC, 50/60Hz
– Power Consumption: 50W
– System Output Ports:
– 8-Pin DIN × 3
– Supports up to 25 microphone units per port
– Audio Outputs:
– RCA × 2
– XLR × 1
– 6.3mm Jack × 1
– Rack Size: 19-inch, 1U
– Dimensions: 483 × 240 × 44 mm
– Net Weight: 3.3 kg
– Color: Black
– Compatible Units: HT-250C Chairman Unit, HT-250D Delegate Units

---

Ideal Applications

– Mosque bayan & committee discussion systems
– Corporate boardroom meetings
– Government & municipal conference halls
– University lecture rooms
– Training centers & seminar halls
– Hotel & event conference rooms

---

Why Choose HTDZ HT-7000C?

– Proven reliability for daily professional use
– Scalable for future expansion
– Clean audio for speech-heavy environments
– Compatible with HTDZ conference microphones
– Excellent value for institutional installations

---

Buy HTDZ HT-7000C Conference Main Unit in Pakistan

Get the HTDZ HT-7000C Conference Main Control Unit in Pakistan at the best price with official warranty and nationwide delivery.
Perfect for mosques, schools, offices, and government institutions looking for a stable, expandable, and professional conference audio solution.
