Description

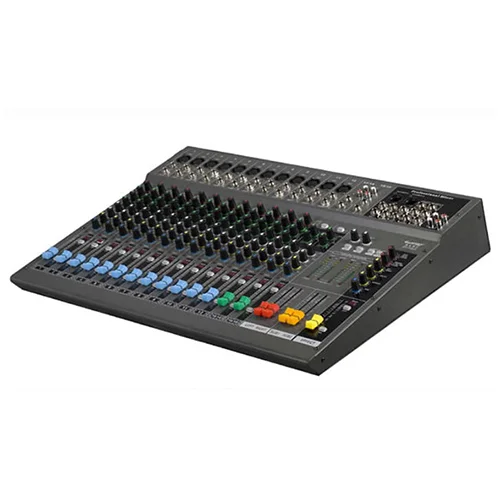

The HTDZ HT-KF16/2 is a professional-grade 12-channel pre-mixing amplifier engineered for speech-critical environments where multiple microphones must work together with clarity, balance, and minimal feedback. Built by HTDZ, this compact console is ideal for masjids, schools, universities, seminar halls, conference rooms, and indoor PA/stage announcements.
With 12 mono mic inputs and 2 stereo line inputs, the HT-KF16/2 handles complex mic setups effortlessly—perfect for imam, muazzin, bayan, lecturers, panel discussions, and announcements. Studio-grade 3-band EQ (Low/Mid/High) on channels enables precise voice shaping, while 48V phantom power supports condenser microphones for enhanced detail and presence. Built-in USB recording lets you capture lectures, speeches, and bayan directly—no external recorder needed.
Designed for Multi-Mic Clarity & Stability
Optimized for demanding speech setups:
– 12 mono microphone inputs for large panels and prayer halls
– 2 stereo inputs for background audio or media playback
– Clean signal path for natural, intelligible vocals
– Excellent gain structure to minimize feedback
Studio-Grade 3-Band EQ for Precise Voice Control
Dial in the perfect sound for any room:
– Low: 80 Hz ±15 dB – controls bass/rumble
– Mid: 2.5 kHz ±15 dB – enhances speech presence
– High: 12 kHz ±15 dB – adds clarity and air
– Helps tame harshness and improve intelligibility
Phantom Power & USB Recording – Professional & Practical
Modern features for everyday use:
– 48V phantom power for condenser microphones
– USB recording supported
– Record bayan, khutba, lectures, meetings
– Simple plug-and-play operation
Ultra-Low Distortion, Clean Audio Performance
Built for professional PA applications:
– THD < 0.05% (1 kHz)
– Signal-to-Noise Ratio: 71 dB
– Smooth, noise-free mixing for long sessions
– Reliable performance for daily operation
HTDZ HT-KF16/2 – Technical Specifications
– Model: HTDZ HT-KF16/2
– Type: Pre-Mixing Amplifier Console
– Inputs:
– 12 × Mono Mic Inputs
– 2 × Stereo Line Inputs
– EQ Control:
– Low (80 Hz ±15 dB)
– Mid (2.5 kHz ±15 dB)
– High (12 kHz ±15 dB)
– Frequency Response: 20 Hz – 20 kHz (+1 dB / −3 dB)
– Gain:
– Mono: −55 dB to 0 dB
– Stereo: −10 dB to 0 dB
– Signal-to-Noise Ratio: 71 dB
– Total Harmonic Distortion: < 0.05% (1 kHz)
– Phantom Power: Yes (48V)
– Headphone Output: 40 mW (200 Ω)
– Maximum Output Level: 19 dBm (1 kHz, THD ≤ 0.5%)
– Power Consumption: 45 W
– USB Recording: Supported
Common Uses
– Masjid imam, muazzin & bayan sound systems
– School announcements & function halls
– University lecture rooms & auditoriums
– Media, training & conference environments
– Indoor event and stage PA setups
Why Choose the HTDZ HT-KF16/2?
– Handles many microphones without distortion
– Maintains clear, feedback-free speech
– Ideal for masjid bayan & namaz sound systems
– USB recording for archiving lectures and events
– Compact, reliable, and easy to operate
– Professional performance at an excellent value
Buy HTDZ HT-KF16/2 in Pakistan
Buy the HTDZ HT-KF16/2 12-Channel Pre Mixing Amplifier at the best price in Pakistan—a dependable choice for masjids, schools, conferences, and PA installations requiring clear multi-mic control.
Available with official warranty, nationwide delivery, and after-sales technical support.
