Description

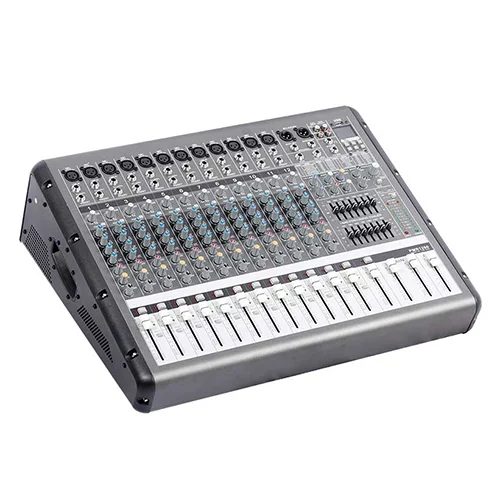

The HTDZ HT-PF16/2 is a professional 12-channel powered mixer engineered to deliver powerful, clean, and intelligible audio for masjids, schools, conference halls, wedding venues, and live stage events. Built by HTDZ, this all-in-one unit combines a full-featured mixer with a robust dual-power amplifier (650W × 2 @ 4Ω)—eliminating the need for external amps and simplifying installation.
Designed for speech-critical environments, each mono channel includes a 4-Band EQ (Low, Low-Mid, High-Mid, High) to precisely shape vocals for imam mic, bayan, khutba, lectures, and announcements. A 24-bit DSP digital effects processor adds studio-quality reverb and echo, enhancing vocal presence without sacrificing clarity.
Powerful Output for Medium to Large Venues
Built to drive professional PA speakers with confidence:
– Output Power: 2 × 650W @ 4Ω
– Strong headroom for clean, distortion-free sound
– Ideal for large prayer halls, auditoriums, and event spaces
– Reliable performance for long operating hours
Precision Voice Control with 4-Band EQ (Per Channel)
Optimized for clear speech and balanced music:
– 4-Band EQ on every mono channel
– Fine control over low, low-mid, high-mid, and high frequencies
– Helps reduce feedback and improve intelligibility
– Perfect for masjid speech, lectures, and stage vocals
24-Bit DSP Effects – Reverb & Echo for Vocals
Enhance vocals naturally:
– 24-bit digital DSP effects processor
– High-quality echo and reverb presets
– Tuned for bayan, naat, khutba, and live performance
– Adds depth without muddying speech
48V Phantom Power – Condenser Mic Ready
Professional microphone support built-in:
– 48V phantom power for condenser microphones
– Clear, detailed sound capture
– Ideal for podium and speech microphones
USB Playback & Recording – Modern Convenience
Record and play audio with ease:
– USB/MP3 playback for nasheeds and background tracks
– USB recording to capture sermons, lectures, and events
– Plug-and-play operation—no extra devices required
Monitoring, Routing & Easy Operation
Installer-friendly and user-friendly design:
– 10-segment LED level meters for accurate monitoring
– AUX send/return for external processors
– Wide 20Hz–20kHz frequency response for full-range audio
– Clean layout for fast learning and operation
HTDZ HT-PF16/2 – Technical Specifications
– Model: HTDZ HT-PF16/2
– Channels: 12 mono inputs
– Output Power: 2 × 650W @ 4Ω
– Equalizer:
– 4-Band EQ per channel
– Effects Processor:
– 24-bit DSP digital effects
– Phantom Power: 48V
– AUX: 1 send / 1 return
– Frequency Response: 20Hz – 20kHz (+1 dB / −3 dB)
– Gain Control:
– Mono: −55 dB to 0 dB
– Stereo: −10 dB to 0 dB
– USB/MP3 Playback: Yes
– USB Recording: Yes
– Display: 10-segment level meter
Where It’s Used
– Masjid sound systems (imam mic & bayan)
– Wedding & banquet halls
– School & college auditoriums
– Conference & seminar rooms
– Live sound and small stage performances
Why Choose the HTDZ HT-PF16/2 Powered Mixer?
– All-in-one mixer + power amplifier solution
– Excellent speech clarity for masjid and lecture use
– High power output suitable for large halls
– Professional DSP effects for vocal enhancement
– USB playback & recording for modern workflows
– Durable, reliable, and easy to operate
Buy HTDZ HT-PF16/2 Powered Mixer in Pakistan
Buy the HTDZ HT-PF16/2 12-Channel Powered Mixer at the best price in Pakistan—a dependable choice for masjids, schools, conferences, and live events.
Available with official warranty, nationwide delivery, and after-sales technical support for complete peace of mind.
