Description

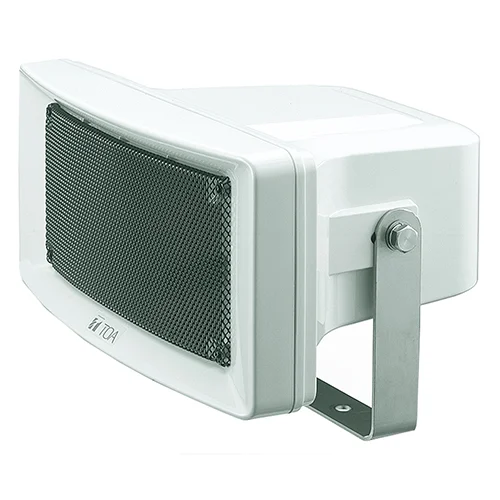

The TOA CS-304 is a 30-watt wide-range weatherproof speaker engineered to deliver clear, intelligible voice with the smoother tonal quality of a dynamic speaker—even in challenging outdoor conditions. Designed by TOA, it combines the throw and focus of a horn with wide, even coverage for announcements, Azan, and background audio.
Clear Coverage with Constant Directivity
At the heart of the CS-304 is a constant-directivity horn (90° horizontal) that keeps speech intelligible across its coverage area. This means listeners hear consistent clarity—front to edge—ideal for courtyards, walkways, and open spaces.
Built for Outdoors (IP65)
– IP65 dust & water protection for rain, humidity, and dust
– ABS resin enclosure with corrosion-resistant finishes
– Stainless-steel bracket & screws for long-term mounting security
– Stable operation from -20°C to +55°C
Flexible 70V / 100V Line Integration
A rotary impedance selector allows fast power-tap changes, making installation simple in distributed PA networks without rewiring—perfect for scalable projects.
Technical Specifications
– Model: TOA CS-304
– Type: Wide-range weatherproof speaker
– Rated Power: 30 W
Impedance / Power Taps
– 100 V line: 330 Ω (30 W), 500 Ω (20 W), 1 kΩ (10 W)
– 70 V line: 170 Ω (30 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W)
– Sensitivity: 98 dB (1 W, 1 m)
– Frequency Response: 120 Hz – 15 kHz
– Speaker Component: 12 cm cone-type
– Horizontal Coverage: 90° (±45°) constant directivity
– Protection Rating: IP65
Construction
– Horn & cover: ABS resin, off-white
– Bracket & screws: Stainless steel
– Grille: Aluminum
– Dimensions (W × H × D): 366 × 230 × 272 mm
– Weight: 3.1 kg
Typical Applications
– Mosque courtyards, minarets & outdoor prayer areas
– Campuses, factories, warehouses & yards
– Transport terminals, parking areas & parks
– Outdoor paging and announcement zones
For outdoor Azan and announcements, the CS-304 integrates seamlessly into a professionally planned Masjid Sound System.
It’s also a proven choice for large-area paging within a Public Address System.
Why Choose TOA CS-304?
– Wide, even coverage with constant directivity
– Weatherproof (IP65) for permanent outdoor use
– Clean speech with natural tone for voice & light music
– Quick setup via rotary power tap
– Trusted TOA reliability for institutional installations
Buy TOA CS-304 in Pakistan
Choose the TOA CS-304 Wide-Range Weatherproof Speaker for clear, durable outdoor audio, ideal for mosque announcements and dependable public-address coverage across Pakistan.
