Description

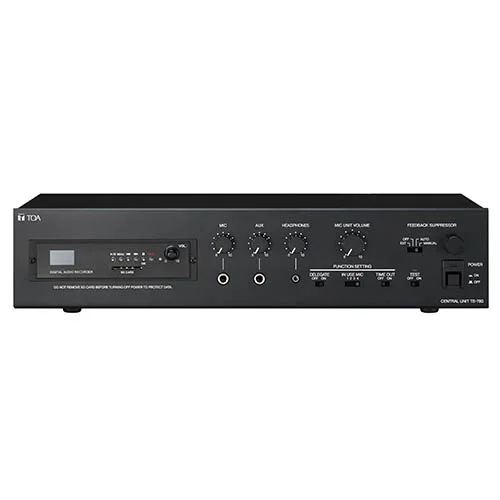

The TOA TS-780 Central Unit is the core of TOA’s reliable and flexible conference system, designed for professional environments such as corporate boardrooms, government institutions, universities, and conference halls.
It serves as the main control hub for connecting TS-781 Chairman and TS-782 Delegate Units, allowing clear, organized discussion sessions with full system management capabilities. The built-in MP3 recorder enables direct recording of meeting audio to an SD card, ensuring accurate documentation of all discussions without external recording devices.
The system can be expanded by linking up to three TS-780 Central Units, supporting larger conference installations. Thanks to its intuitive front-panel layout and high-quality audio circuitry, the TS-780 delivers excellent sound clarity and operational simplicity.
For added flexibility, it can be rack-mounted (EIA standard 2U) using the optional bracket kit, making it ideal for permanent installations.
Key Specifications
Model: TS-780
Power Source: 230 V AC, 50/60 Hz
Power Consumption: 60 W
Inputs:
MIC: –60 dBV, 600 Ω, unbalanced (phone jack)
AUX: –20 dBV, 10 kΩ, unbalanced (phone jack)
Outputs:
Recording: –20 dBV, 10 kΩ, unbalanced (phone jack, pin jack ×2)
Expansion: Input/Output 0 dBV, 10 kΩ, unbalanced (pin jack ×2)
Control: 10 kΩ or more, voltage output (pin jack ×2)
Connectivity: Supports TS-781 and TS-782 units via daisy-chain
Recorder: Built-in MP3 recorder (SD card storage)
Finish: Aluminium, 30% gloss, black
Dimensions: 420 (W) × 96.1 (H) × 226.2 (D) mm
Mounting: Rack-mountable (optional brackets)
Features
Built-in digital recording for efficient meeting documentation
Expandable architecture – link up to 3 central units
Simple plug-and-play wiring with line connectors
Excellent audio quality for intelligible speech reproduction
Professional rack-mount design with robust aluminum chassis
Compatible with TOA TS-780 Series discussion systems
Applications
Corporate conference rooms
Government councils and city halls
Educational institutions
Hotels and convention centers
Houses of worship
Why Choose TOA TS-780
Trusted TOA Japan engineering for reliability and sound clarity
Fully scalable for small to large meetings
Built-in recording eliminates external devices
Easy operation with intuitive controls
Durable professional design for continuous use
