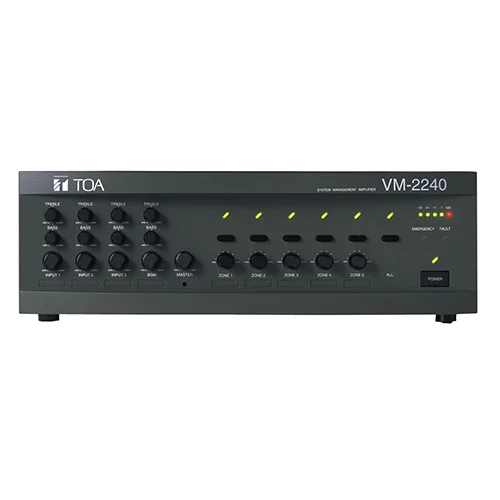

TOA VM-2240 System Managing Amplifier (240W)

Description

The TOA VM-2240 System Managing Amplifier (240W) is a professional-grade multifunction amplifier designed for public address (PA), emergency broadcast, and background music (BGM) applications. With five independent speaker zones, built-in attenuators, and remote-controlled functionality, it provides comprehensive sound management for medium to large installations such as mosques, universities, shopping malls, and corporate buildings.

Built according to the EN60849 emergency standard, the VM-2240 ensures reliable evacuation announcements and automatic fail-safe operations. When paired with optional units like the EV-200M Voice Announcement Board and SV-200MA Surveillance Module, it enables fully automated emergency voice messaging and real-time system diagnostics for complete peace of mind.

The amplifier includes multiple audio input options—three Mic/Line inputs, one Telephone input, and two BGM (RCA) inputs—allowing seamless integration of microphones, paging stations, and background music sources. Each of its five speaker zones can be independently controlled or activated simultaneously via the All-Call function.

The remote microphone (RM-200M) enables paging from multiple locations, while the built-in control I/O allows connection to external systems such as fire alarms, control panels, and monitoring devices.

Key Features

Model: TOA VM-2240

Rated Output: 240 Watts (total across 5 zones)

Power Source: AC 230V, 50/60 Hz

Frequency Response: 50 Hz – 16 kHz

Distortion: <1%

S/N Ratio: ≥60 dB

Inputs:

3 × Mic/Line (balanced)

1 × Telephone input

2 × BGM (stereo RCA, unbalanced)

1 × 100V speaker input

Outputs:

5 × Zone speaker outputs with attenuators

1 × Direct speaker output

Line / Recording / Pre-amplifier (RCA) outputs

Control I/O: 25-pin D-Sub connectors for remote mic, message trigger, and fault monitoring

Optional Modules:

EV-200M (Emergency Voice Message)

SV-200MA (Surveillance Module)

Indicators: Zone selection, fault, power, and 5-step level bargraph

Dimensions: 419 × 143 × 355 mm

Weight: Approx. 14 kg

Finish: ABS resin + steel plate (dark grey)

Applications

Mosques & Religious Institutions – centralized sermon and Adhan systems

Corporate Buildings & Offices – zone-based paging and background music

Educational Institutes – announcements and emergency evacuation alerts

Shopping Malls & Hotels – background music with emergency broadcast integration

Factories & Warehouses – zone paging and safety announcements

Why Choose the TOA VM-2240?

The TOA VM-2240 offers an all-in-one solution for multi-zone public address management, delivering powerful 240-watt output, intelligent zone control, and superior reliability. With its modular expandability, fault detection, and EN-certified safety compliance, it’s the perfect choice for professional PA and emergency sound systems in Pakistan.
