Description
The TOA WS-5325H Wireless Microphone Set is a high-performance UHF headset wireless system designed for environments where hands-free operation, speech clarity, and signal stability are essential. Built as part of TOA’s premium 5000 Series, this system is ideal for mosques, conference halls, auditoriums, training centers, and institutional venues across Pakistan.
Engineered with PLL-synthesizer technology and true diversity reception, the WS-5325H delivers interference-free wireless performance even in RF-congested environments, making it a trusted choice for professional speech reinforcement.
Purpose-Built for Hands-Free Speech Applications
The WS-5325H is especially suitable where the speaker needs freedom of movement without compromising voice clarity. The lightweight WH-4000H headset microphone ensures consistent mouth-to-mic distance, resulting in natural, intelligible sound for:
– Khutbah, bayan, and dars delivery
– Conference presentations and panel discussions
– Lectures, training sessions, and seminars
– Stage speaking and moderated events
This makes it a strong fit for advanced Masjid Sound System installations and modern Conference Sound System setups where clarity and control are critical.

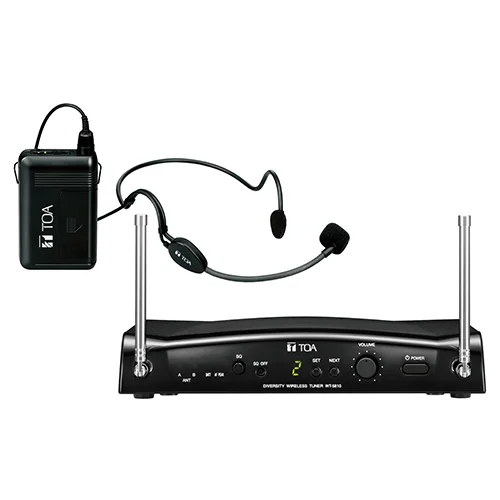

Complete Wireless System Package
Product Composition
– Wireless Bodypack Transmitter WM-5325 × 1
– Headset Microphone WH-4000H × 1
– Diversity Wireless Tuner WT-5810 × 1
– AC Adapter × 1
– Storage Case × 1
– Neck Strap × 1
– Screw Driver × 1
This complete configuration ensures quick deployment in professional environments without additional accessories.
Wide UHF Frequency Coverage & Channel Flexibility
– Frequency Range: 576 – 865 MHz (UHF)
– Channel Availability: Up to 64 selectable frequencies (region dependent)
– Channel Spacing: PLL-synthesized precision tuning
– Tone Frequency: 32.768 kHz
– Operating Temperature: –10°C to +50°C
This wide tuning capability allows multiple systems to operate simultaneously without interference, which is essential in institutional and commercial audio deployments.
Wireless Transmitter – WM-5325
– Modulation: Frequency Modulation
– RF Carrier Power: Factory preset 10 mW ERP (Max < 50 mW)
– Oscillator: PLL Synthesized
– Maximum Input Level: –14 dB to –29 dB
– Battery Options:
– WB-2000 rechargeable battery (optional)
– AA alkaline battery
– Battery Life:
– Approx. 13 hours (rechargeable)
– Approx. 10 hours (AA battery)
– Antenna: Built-in
– Indicators: Power / Battery status LEDs
– Weight: 90 g (with battery)
Headset Microphone – WH-4000H
– Microphone Type: Electret Condenser
– Pickup Pattern: Unidirectional
– Sensitivity: –66 dB ±3 dB
– Cable Length: 1.3 m
– Lightweight stainless frame with secure fit
– Designed for long-duration speaking comfort
The headset design significantly reduces feedback and level fluctuations compared to handheld or lapel microphones.
Diversity Wireless Tuner – WT-5810
– Receiving System: Double super-heterodyne
– Diversity Type: Space diversity
– Signal-to-Noise Ratio: 104 dB or higher
– Harmonic Distortion: ≤ 1%
– Frequency Response: 100 Hz – 15 kHz (±3 dB)
– Outputs:
– Balanced XLR (MIC)
– Unbalanced ¼″ Jack (LINE)
– Channel Scan: Automatic usable-frequency search
– Indicators: Antenna A/B, Audio peak, Battery alarm, Channel display
The tuner integrates smoothly with amplifiers and mixers used in Professional Sound System installations.
Key Advantages of TOA WS-5325H
– Hands-free headset microphone for consistent speech clarity
– True diversity UHF reception for stable wireless performance
– Long battery life for full-day use
– Wide channel selection for multi-system environments
– Excellent feedback resistance
– Trusted TOA build quality for long-term reliability
Recommended Applications
– Masjid khutbah, bayan, and teaching systems
– Conference rooms and executive meeting halls
– Auditoriums and lecture theatres
– Training institutes and seminar venues
– Institutional and commercial PA environments
Why Choose TOA WS-5325H in Pakistan?
– Designed specifically for speech-focused professional use
– Performs reliably in RF-dense environments
– Comfortable headset design for long sessions
– Scalable and future-proof for institutional growth
– Ideal upgrade from basic wireless microphone systems
Buy TOA WS-5325H Wireless Headset Microphone System in Pakistan
The TOA WS-5325H Wireless Microphone Set is the ideal solution for organizations that require hands-free operation, superior voice clarity, and dependable wireless performance.
Available in Pakistan with professional system design support, installation guidance, and nationwide delivery.
